Blackmagic

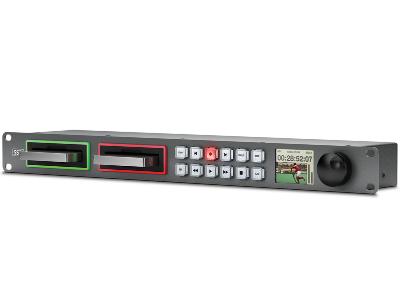

Blackmagic Hyperdeck Studio Pro 2

Item Code: NMA/HYPERDSTPRO2

HyperDeck Studio Pro records 4:2:2 SD/HD in full uncompressed quality plus Ultra HD in ProRes. Use ProRes 422 (HQ) or DNxHD compression for high quality HD video in file sizes that provide 5 times longer recording than uncompressed. For even longer recording use ProRes 422, ProRes 422 (LT) and ProRes 422 (Proxy). HyperDeck Studio Pro features 6G-SDI, HDMI 4K and analog component connections, plus professional XLR audio and built in Thunderbolt connectivity. It includes a built in power supply for convenience and the 1 rack unit size fits easily into any studio or portable rack.

RRP: 0   Save:

  • Qty:
  • Price:
    $2,610.00
    inc. GST

Found this item cheaper elsewhere? Let us know

HyperDeck Studio Pro records 4:2:2 SD/HD in full uncompressed quality plus Ultra HD in ProRes. Use ProRes 422 (HQ) or DNxHD compression for high quality HD video in file sizes that provide 5 times longer recording than uncompressed. For even longer recording use ProRes 422, ProRes 422 (LT) and ProRes 422 (Proxy). HyperDeck Studio Pro features 6G-SDI, HDMI 4K and analog component connections, plus professional XLR audio and built in Thunderbolt connectivity. It includes a built in power supply for convenience and the 1 rack unit size fits easily into any studio or portable rack.

The world's first SSD video recorder that lets you record forever! HyperDeck Studio features dual SSD slots and automatically continues recording onto the next SSD when one record disk fills. HyperDeck Studio records and plays back uncompressed QuickTime, compressed Apple ProRes 422 (HQ), ProRes 422, ProRes 422 (LT), ProRes 422 (Proxy) or compressed Avid DNxHD MXF files. HyperDeck Studio has a familiar deck style user interface, removable SSD disks and serial control for a 21st century broadcast deck.>/p>

Professional broadcast decks that use fast solid state disks

HyperDeck Studio disk recorders let you record the highest quality uncompressed and compressed ProRes and DNxHD video formats using fast 2.5" SSDs. Designed with familiar VTR controls, HyperDeck Studio includes innovative features that extend beyond the capabilities of traditional decks. Dual SSD slots let you record continuously, when one disk is full recording automatically continues on the next SSD. You can mount an SSD recorded using HyperDeck Studio on to any computer to access your files, so you don't need multiple decks to work with your media. There are two great HyperDeck Studio models to choose from.

HyperDeck Studio is a fantastic modern replacement for aging broadcast decks. You get the same functionality and control of a professional deck with the advantage of recording directly to uncompressed or industry standard ProRes and DNxHD video formats. Connect cameras, switchers or any other video feed to HyperDeck Studio and create files that are perfect for every production and post production workflow! With a slim 1 rack unit design, HyperDeck Studio is considerably smaller than a traditional VTR and fits easily into any equipment rack, OB vehicle or flyway kit.

Choose from two fantastic HyperDeck Studio models

HyperDeck Studio

HyperDeck Studio features 3G-SDI and HDMI connections, familiar VTR controls including a jog/shuttle wheel and RS-422 control, LCD preview screen, internal power supply, plus dual SSD slots for continuous recording. Records and plays back SD/HD uncompressed, ProRes and DNxHD video.

HyperDeck Studio Pro

HyperDeck Studio Pro features 6G-SDI, HDMI 4K and analog connections with standard XLR connectors for audio and timecode, and a built in Thunderbolt port! Supports SD/HD and Ultra HD 4K capture and playback.

Broadcast Video Quality

HyperDeck Studio records SD/HD 10-bit 4:2:2 uncompressed video for perfect broadcast quality. With uncompressed video you can create the sharpest VFX plates for match moving, compositing and more. You get deep dynamic color range for color correction and perfect keying without jagged edges. You can also use industry standard compressed video formats that maintain incredible HD quality at reduced files sizes. With HyperDeck Studio Pro you can now push quality to new heights, with additional support for Ultra HD 4K using Apple ProRes.

Industry Standard Formats

HyperDeck Studio models gives you the choice of recording quality. You can record and play back incredible uncompressed 10-bit 4:2:2, or choose from high quality ProRes 422 (HQ) or DNxHD formats. HyperDeck Studio models have ProRes 422, ProRes 422 (LT) or ProRes 422 (Proxy)for longer recording. Using ProRes 422 (Proxy) you can record over 24 hours of 1080HD video on a single 480GB SSD drive. You could record for 2 days non stop before swapping SSD drives!

Unparalleled File Compatibility

HyperDeck Studio records universally compatible QuickTime files in 10-bit uncompressed or compressed DNxHD and ProRes formats so they can be used with all popular software packages, such as Final Cut Pro X, Adobe Premiere Pro CC, After Effects CS6, Avid Media Composer 6, DaVinci Resolve and more. Customers will always be free to choose the editing, color correction and finishing tools that are best for their clients and jobs.

Specifications

Video Input Digital Video
3 x SDI (10-bit SD/HD/3G switchable)
1 x SDI (10-bit SD/HD/3g/6G Ultra HD switchable)
1 x HDMI 1.4 type A (supports Ultra HD 4K)

Analog Video
1 x Component YUV (3 x BNC) SD/HD
Video Output Digital Video
3 x SDI (10-bit SD/HD/3G switchable)
1 x SDI (10-bit SD/HD/3G/6G Ultra HD switchable)
1 x SDI Monitor Output (10-bit SD/HD/3G switchable)
1 x HDMI 1.4 type A (supports Ultra HD 4K)

Analog Video
1 x Component YUV (3 x BNC) SD/HD
Audio Input Analog
2 x 3-pin XLR balanced connectors
2 x RCA jacks for unbalanced audio

Digital
SDI
16 x channels embedded in SD and HD in QuickTime files.
2 x channels in Avid DNxHD MXF files.

HDMI
8 x channels embedded in SD and HD in QuickTime files.
2 x channels in Avid DNxHD MXF files.
Audio Output Analog
2 x 3-pin XLR balanced connectors

Digital
SDI
16 x channels embedded in SD and HD in QuickTime files. 2 x channels in Avid DNxHD MXF files.

HDMI
8 x channels embedded in SD and HD in QuickTime files.
2 x channels in Avid DNxHD MXF files.
Computer Interface 1 x Thunderbolt (for video/audio)

1 x USB 2.0 mini B-type for initial setup, software updates and HyperDeck Utility software control
SSD Interface 2 x 2.5" SATA 3Gb/s
Sync Input Blackburst or Tri-Sync
Device Control Sony compatible RS-422 deck control port
Recorder Recorder control:
12 buttons and jog wheel for local control /
or use either RJ45 Ethernet or USB 2.0 high speed interface

Recorder configuration:
use USB 2.0 high speed interface
Format Support SD
NTSC/PAL
525 29.97 / 625 25 (525 59.94i / 625 50i)
480p60 and 576p50 via HDMI only

HD
720p 50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/p30

4K
3840 x 2160p 23.98/24/25/29.97/30
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M
SDI Metadata Support HD RP188 and closed captioning
Sampling Video: 4:2:2 Audio: 48kHz/24-bit
Color Precision 10-bit
Color Space REC 601
REC 709
Multiple Rate Support SDI and HDMI switchable between SD, HD and Ultra HD. SDI switches between 270 Mb/s standard definition SDI, 1.5G-SDI HD, 3G-SDI and 6G-SDI. Analog SD/HD
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Codecs Supported Uncompressed QuickTime
Apple ProRes 422 (HQ) QuickTime
ProRes 422 QuickTime
ProRes 422 (LT) QuickTime
ProRes 422 (Proxy) QuickTime
Avid DNxHD QuickTime
Avid DNxHD MXF
Display Built-in LCD for video, audio and timecode monitoring
Rack Size 1RU / less than 7" deep (approx. less than 18 cm)
Power Supply Built-in international AC power supply with IEC C14 inlet
110-240V, 50-60Hz

Note: AC power cord is not included
