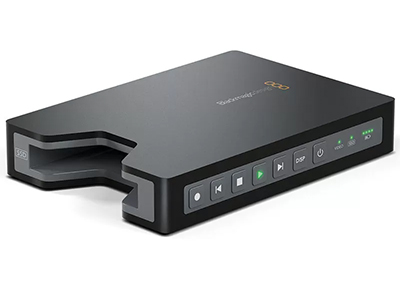

Blackmagic Hyperdeck Shuttle 2

Item Code: NMA/HYPERDPT

HyperDeck Shuttle gives you the quality of uncompressed recording direct to common low cost SSDs in the smallest possible size

RRP: 0   Save:

  • Qty:
  • Price:
    $450.00
    inc. GST

Found this item cheaper elsewhere? Let us know

The world's smallest uncompressed video recorder!

Dramatically improve the quality of professional or consumer cameras! HyperDeck Shuttle gives you the quality of uncompressed recording direct to common low cost SSDs in the smallest possible size! HyperDeck Shuttle is compact, affordable and battery powered so it's perfect as a field recorder. HyperDeck Shuttle bypasses your camera's compression and records from SDI and HDMI direct into the highest quality uncompressed video. SSDs are cheap and fast, so you can edit directly from the SSD media itself. Only SSDs eliminate time wasting file copying!

Perfect Quality

Compression destroys image quality and even high-end cameras compress images. Now you will never compromise quality because you can bypass the camera compression to get perfect uncompressed 10-bit SD/HD video. That's even higher quality than broadcast decks! Create the sharpest VFX plates for match moving, compositing and more. Get deep dynamic color range for color correction and do perfect, clean keying without jagged edges caused by compression. Even on shots like flyaway hair and multi-colored patterns. Now quality won't limit your creativity!

Go Anywhere, Record Everywhere!

With a compact and incredibly sturdy design, HyperDeck Shuttle is machined out of a solid block of aircraft grade aluminum! That means you get a design with the strength to go anywhere! Take your HyperDeck Shuttle into the field, on set, to live events, or even on your extreme sport shoots. With an internal battery, just recharge and go! The possibilities are virtually endless!

Solid State Disk (SSD) Technology

Simply plug a 2.5" solid state disk into HyperDeck Shuttle and you get video recording with blazing fast speed, low power consumption and totally silent operation. Now you can eliminate complicated and expensive disk arrays. A single SSD can record uncompressed video effortlessly! Removable media like CF and SxS cards simply cannot match that kind of performance and require slow file copying to use.

Faster Cost Effective Workflows

HyperDeck Shuttle improves every step of your production workflow pipeline. For quick on set QC or client preview, connect HyperDeck Shuttle to a projector or TV via the HDMI or SDI outputs. You can even edit directly from the SSD with no digitizing or file copying.

Familiar VTR Feel

HyperDeck Shuttle has standard deck style function buttons, as well as LEDs that indicate input signal lock, recording and battery status. With the affordable HyperDeck Shuttle you won't be tying up your expensive VTRs, but you'll still be in familiar operating territory.

Unparalleled File Compatibility

Why be locked into one NLE or color grading system with a proprietary codec that could become obsolete at any time? HyperDeck Shuttle captures universally compatible uncompressed QuickTime files that can be used with all popular software packages.

HyperDeck Shuttle Mounting Plate

Get the ultimate in flexible mounting! HyperDeck Shuttle Mounting Plate simply replaces the bottom foot on your HyperDeck Shuttle with this innovative mounting plate thats so easy to install it requires only 4 small bolts! Then you get everything you need for an extremely versatile and flexible mounting solution for your HyperDeck Shuttle. Now you can easily secure your HyperDeck Shuttle to a camera rig with your choice of rail mounts, cold shoe mounts, articulated arms and a whole lot more. That's because HyperDeck Shuttle Mounting Plate features a variety of pre-drilled 1/4" and 3/8" holes, making it compatible with every mount accessory you'll ever need. It also gives you the freedom to power your HyperDeck Shuttle from an external battery. Simply attach a V-Mount or Anton Bauer style battery plate and you're good to go.

Connect to Professional or Consumer Cameras

With SDI and HDMI inputs and outputs, HyperDeck Shuttle works with virtually every camera, deck or monitor! Effortlessly plug into monitors or televisions for instant on set preview. Use HyperDeck Shuttle as the video playback source for digital signage systems or switchers. Imagine using HyperDeck Shuttle connected to a live production switcher for recording events, and then using it for live playback! HyperDeck Shuttle can do almost anything and it's so small you'll take it everywhere!

Hyperdeck Shuttle/Studio Specifications

HyperDeck Shuttle 2

HyperDeck Studio

Connections

SDI Video Input 1 x 10-bit SD/HD switchable via DIN 1.0/2.3 connector. 1 x 10-bit SD/HD/3 Gb/s SDI switchable.
SDI Video Output 1 x 10-bit SD/HD switchable via DIN 1.0/2.3 connector. 2 x 10-bit SD/HD/3G Gb/s SDI switchable.
1 x 10-bit SD/HD/3 Gb/s SDI switchable Loop Output.
1 x 10-bit SD/HD/3 Gbs/SDI switchable Monitor Output.
HDMI Video Input 1 x HDMI 1.3 type A connector 1 x HDMI 1.3 type A connector
HDMI Video Output 1 x HDMI 1.3 type A connector 1 x HDMI 1.3 type A connector
SDI Audio Input 16 Channels embedded in SD and HD 16 Channels embedded in SD and HD
SDI Audio Output 16 Channels embedded in SD and HD 16 Channels embedded in SD and HD
HDMI Audio Input 8 Channels embedded in SD and HD 8 Channels embedded in SD and HD
HDMI Audio Output 2 Channels embedded in SD and HD 2 Channels embedded in SD and HD
SSD Interface 1 x 2.5" SATA 3Gb/s 2 x 2.5" SATA 3Gb/s
Sync Input None Blackburst or Tri-Sync
Device Control None Sony™ compatible RS422 deck control port
Recorder Control 7 buttons for local control of HyperDeck Shuttle or use USB 2.0 high speed interface 12 buttons and jog wheel for local control of HyperDeck Studio or use either RJ45 Ethernet or USB 2.0 high speed interface
Recorder Configuration Use USB 2.0 high speed interface Use USB 2.0 high speed interface
Computer Interface 1 x Mini-B type USB 2.0 connector for initial setup, firmware updates and HyperDeck Utility software control 1 x Mini-B type USB 2.0 connector for initial setup, firmware updates and HyperDeck Utility software control

Standards

SD Format Support 625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only. 625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only.
HD Format Support 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30. 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30.
SDI Compliance SMPTE 259M, SMPTE 292M SMPTE 259M, SMPTE 292M
SDI Metadata Support HD RP188 and closed captioning. HD RP188 and closed captioning.
Video Sampling 4:2:2 4:2:2
Audio Sampling Television standard sample rate of 48 kHz and 24 bit Television standard sample rate of 48kHz and 24 bit
Color Precision 10-bit 10-bit
Color Space REC 601, REC 709 REC 601, REC 709
Multiple Rate support SDI and HDMI switches between 270 Mb/s standard definition SDI and 1.5 Gb/s HD-SDI. SDI and HDMI switches between 270 Mb/s standard definition SDI and 1.5 Gb/s HD-SDI.

Extras

Displays None Built-in LCD for video, audio and timecode monitoring
Battery Rechargeable built in lithium-ion polymer battery None
Power Supply +12V universal power supply included with international socket adapters for all countries. Connection supports 12V to 18V. +12V universal power supply included with international socket adapters for all countries.
Product Warranty 12 Month Limited Manufacturer's Warranty. 12 Month Limited Manufacturer's Warranty.
