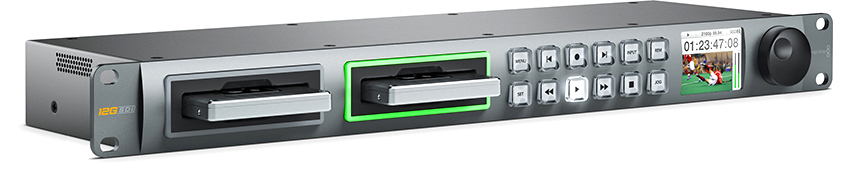

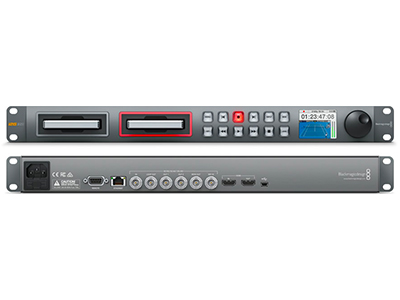

When you need to go beyond 1080p30, HyperDeck Studio 12G is a more advanced version of HyperDeck Studio. Featuring 12G-SDI connections and HDMI 2.0, HyperDeck Studio 12G works with all SD, HD and Ultra HD formats up to 2160p60 over a single cable. You still get all of the benefits of HyperDeck Studio, including its familiar VTR style deck controls and broadcast quality compressed and uncompressed 10-bit 4:2:2 recording.
UHD 4K Recording and Playback
The HypeDeck Studio 12G records video to uncompressed QuickTime at 10-bit with 4:2:2 color sampling at up to UHD 4K (3840 x 2160) at 60 fps. It also records to ProRes 422(HQ), ProRes 422, ProRes 422 (LT), ProRes 422 (Proxy), as well as Avid DNxHD and Avid DNxHD MXF, also all in SD and SD
Two SSD Bays
For accepting storage media, the unit incorporates two 2.5" slots with SATA connectors for use with SSD drives. The ability to swap out drives while recording enables almost endlessly durations, seamlessly switching from one SSD to the other as the first one fills up.
Video Inputs
The HyperDeck Studio 12G supports SD, HD, 3G, 6G, and 12G signals over SDI and up to UHD 4K at 60p via HDMI 2.0.
Video Outputs
A total of four SDI outputs are provided: a single loop-out that mirrors the incoming signal, two playback outputs, and a dedicated monitor output. Additionally, there is a single HDMI 2.0 output with UHD 4K at 60p support that can serve as a loop-out, be used for playback, or connected to a local monitor
VTR Style Controls
The HyperDeck Studio 12G features VTR style front panel controls for record and playback. With illuminated buttons, for working in dim locations or settings, while a built-in jog/shuttle wheel provides analog style control over your playback.
Built-In LCD Monitor
The unit's front panel also features a built-in LCD screen that allows you to monitor input or playback video as well as timecode, format, and audio levels.
